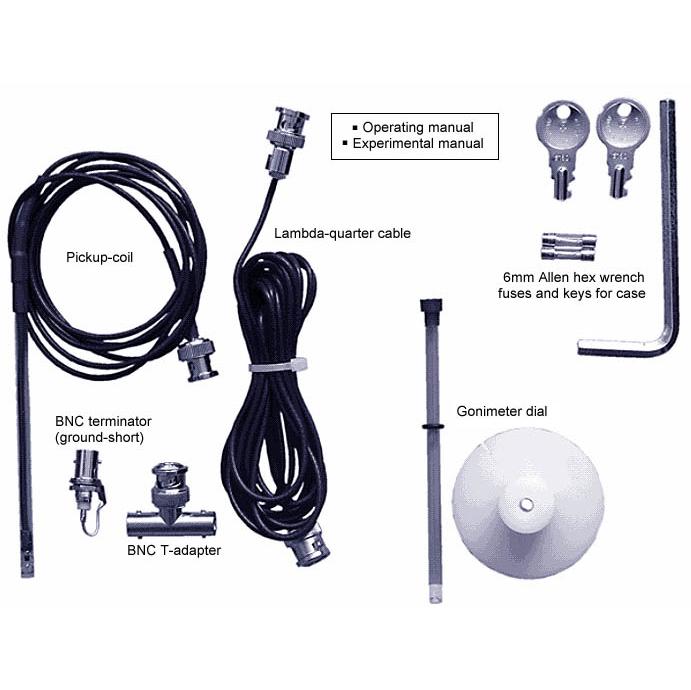

The PS-15 System

Console Panel Front View

1. Power ON

2. Programmer operating indicator, blinks red when sequence is pulsing

3. NMR lock stabilizer DC offset compensation indicator

4. NMR lock stabilizer ON

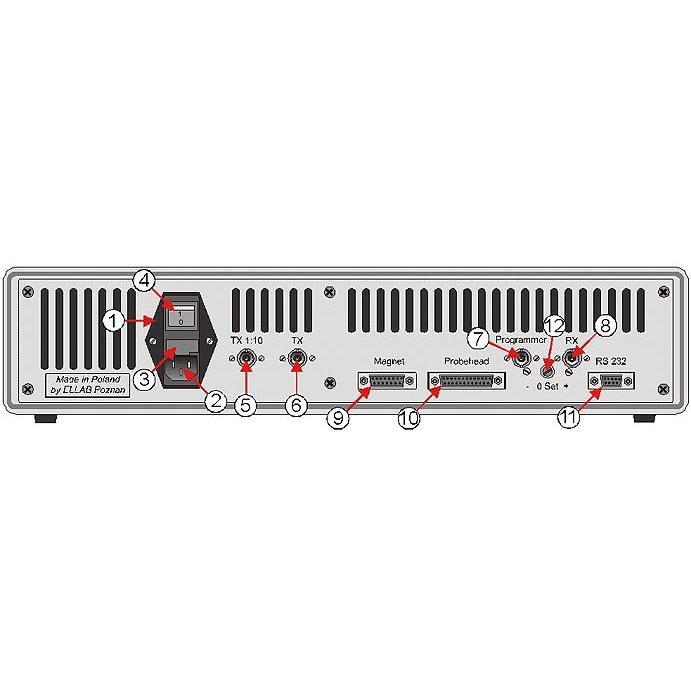

Console Panel Rear View

1.   Power entry module
2.   Power cable receptacle
3.   Fuse
4.   Power switch
5.   TX 1:10. Transmitter RF pulses monitor output; BNC. Can be used with an oscilloscope
6.   TX – to probehead. Transmitter RF pulses main output; BNC
7.   Programmer. RF pulses envelope monitor output. TTL level; BNC
8.   RX- from probehead. Nuclear induction signal input (to the receiver); BNC
9.   Magnet. Electromagnet power supply output (to main coils and flux coils) /input (correction coils); 15 pin D-subminiature connector
10.   Probehead. Input/output to probehead; 25 pin D-subminiature connector
11.   RS 232. PC serial port input/output; 9 pin D-subminiature connector
12.   – I0 Set +. Electromagnet I0 current offset

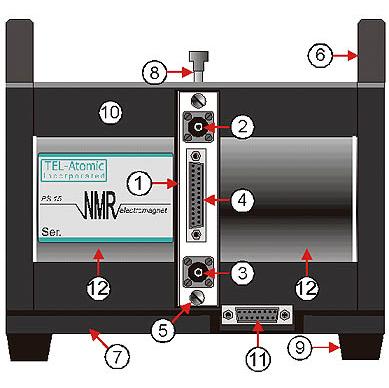

Electromagnet And Probehead Front View

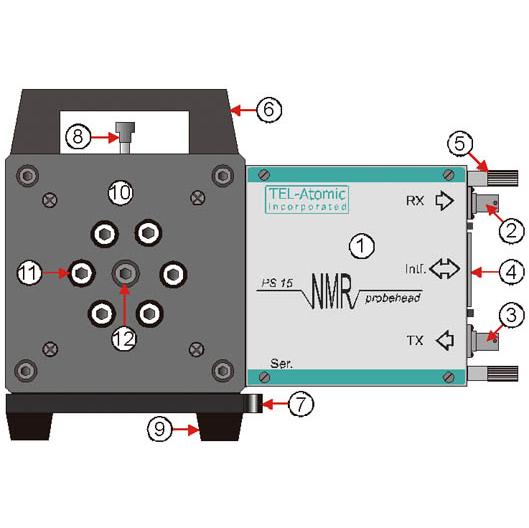

1.   Preamplifier
2.   RX- to receiver. Nuclear induction signal output (to the receiver); BNC
3.   TX- from transmitter. RF pulses input(from the transmitter); BNC
4.   Probehead interface input/output; 25 pin D-subminiature
5.   Probe locking screw
6.   Electromagnet handle
7.   Electromagnet base
8.   Sample
9.   Magnet rubber foot
10.  Magnet yoke
11.  Electromagnet coils input/output (main coil, flux coil, correction coil), 5 pin D-subminiature
12. Electromagnet poles
